第21课 WiFi+网页控制LED和风扇#
21.1 项目介绍#
物联网，就是将硬件设备接入网络。接入网络最便捷的方法就是使用WiFi连接了。ESP32 Plus主控板自带有WiFi模块，所以将我们的智能家居接入网络还是比较简单的。
我们将智能家居连接到局域网，也就是你家里的WiFi或者你手机开启的热点。连接成功后就会分配一个地址，这个地址就可以用来通讯了，我们将分配到的地址在Shell窗口中打印出来。
本项目内容包括ESP32的WiFi配置、网页设置以及如何编写代码等实现WiFi网页远程监控和控制LED和风扇。
21.2 相关资料#

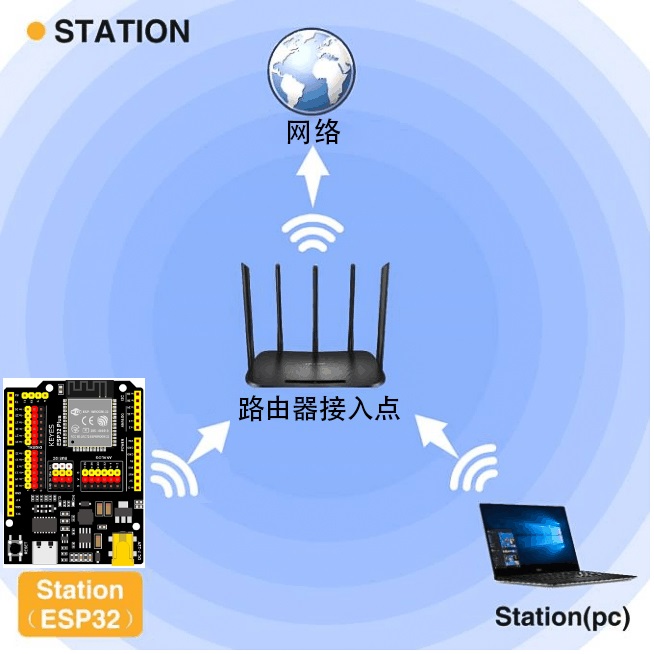

Station模式：当ESP32选择Station模式时，它作为一个WiFi客户端。它可以连接路由器网络，通过WiFi连接与路由器上的其他设备通信。如下图所示，PC和路由器已经连接，ESP32如果要与PC通信，需要将PC和路由器连接起来。
21.3 实验组件#
|
|
|
|
|---|---|---|---|
ESP32 Plus主板 *1 |
130电机模块 *1 |
黄色LED模块 *1 |
3P线 *1 |
|
|
|
|
I2C LCD1602模块 *1 |
风扇叶 *1 |
4P线 *2 |
USB线 *1 |
21.4 模块接线图#

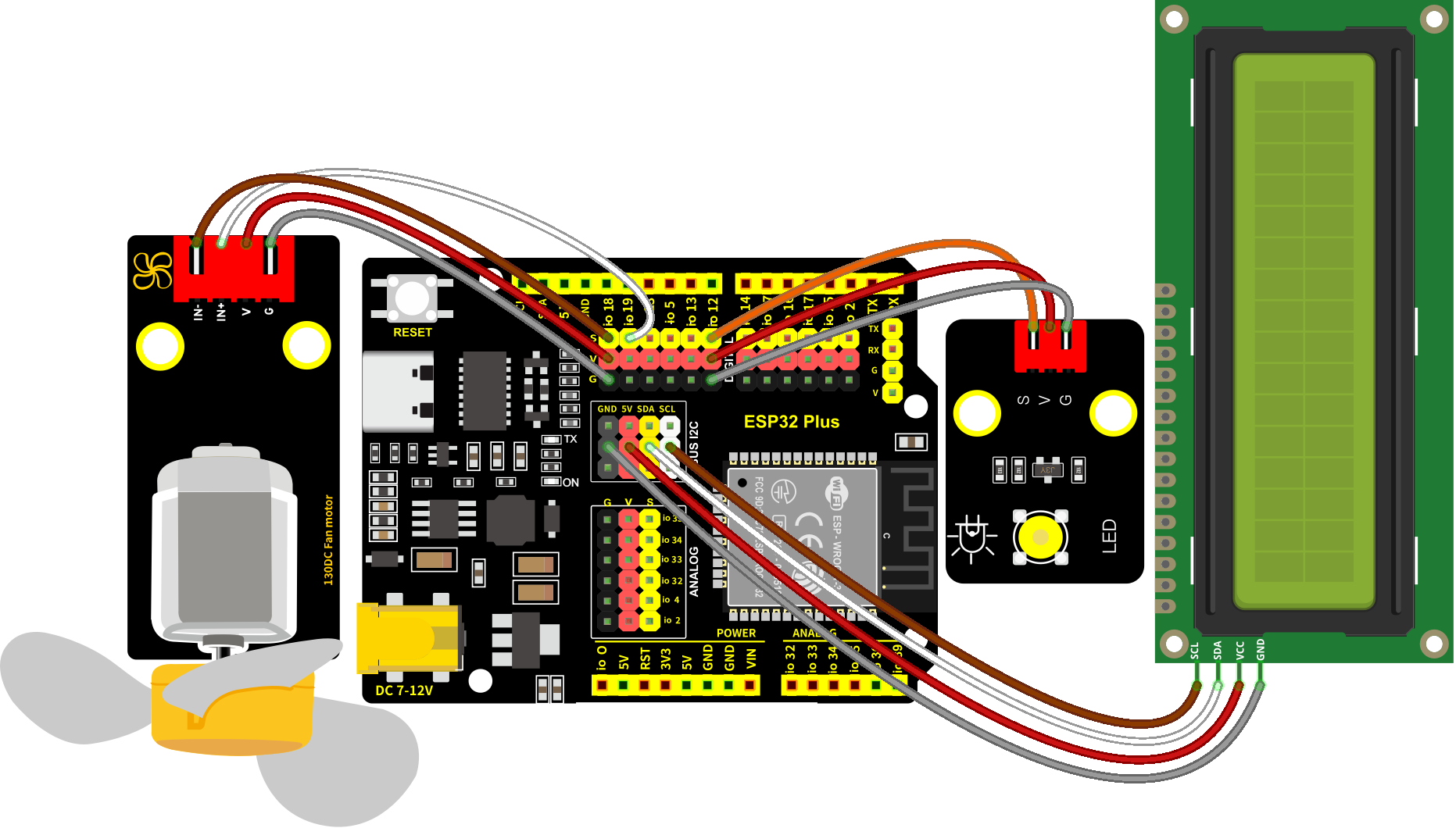

黄色LED灯，I2C 1602 LCD模块和130电机模块的控制引脚：
黄色LED灯（S引脚） |
io12 |
|---|---|
130电机模块（IN+引脚） |
io19 |
130电机模块（IN-引脚） |
io18 |
I2C 1602 LCD模块（SDA引脚） |
SDA |
I2C 1602 LCD模块（SCL引脚） |
SCL |
⚠️ 特别注意：智能家居已经组装好了，这里不需要把黄色LED灯，I2C 1602 LCD模块和130电机模块拆下来又重新组装和接线，这里再次提供接线图，是为了方便您编写代码！
21.5 WIFI网页控制LED和风扇的实验代码#
打开“Thonny”软件，点击“此电脑” → “D:” → “Python资料” → “Python_代码”。并鼠标左键双击 “Project_21_wifi_control_led_fan.py”。
⚠️ 特别提醒： 打开代码文件后，需要修改ESP32开发板需要连接的WiFi名称与密码，您需要分别将 ChinaNet-2.4G-0DF0 和 ChinaNet@233 替换为您自己的 Wi-Fi 名称和 WiFi 密码。WiFi名称和WiFi密码修改后才能上传下面的示例代码，否则你的ESP32开发板将无法连接网络。
SSID = "ChinaNet-2.4G-0DF0" # 替换为你的Wi-Fi名称
PASSWORD = "ChinaNet@233" # 替换为你的Wi-Fi密码
⚠️ 注意： 请确保代码中的WiFi名称和WiFi密码与连接到您的电脑、手机/平板、ESP32开发板和路由器的网络相同，它们必须在同一局域网（WiFi）内。
⚠️ 注意： WiFi必须是2.4Ghz频率的，否则ESP32无法连接WiFi。
# 作者 : www.keyes-robot.com
from machine import Pin, ADC, PWM, I2C
from time import sleep_ms, ticks_ms
from i2c_lcd import I2cLcd
import network
import socket
import time
import math
# WiFi配置, 目的是连接Wi-Fi
SSID = "ChinaNet-2.4G-0DF0" # 替换为你的Wi-Fi名称
PASSWORD = "ChinaNet@233" # 替换为你的Wi-Fi密码
# 引脚定义
FAN_PIN1 = 19 # 风扇方向控制引脚
FAN_PIN2 = 18 # 风扇PWM调速引脚
LED_PIN = 12 # LED PWM调光引脚
# 初始化LCD
DEFAULT_I2C_ADDR = 0x27
i2c = I2C(scl=Pin(22), sda=Pin(21), freq=400000)
lcd = I2cLcd(i2c, DEFAULT_I2C_ADDR, 2, 16)
# 风扇控制子函数
class FanController:
def __init__(self, dir_pin, pwm_pin):
self.dir_pin = Pin(dir_pin, Pin.OUT)
self.pwm = PWM(Pin(pwm_pin))
self.pwm.freq(1000) # 1kHz PWM频率
self.current_speed = 0
self.is_running = False
self.stop()
print(f"风扇控制器初始化: DIR={dir_pin}, PWM={pwm_pin}")
def set_speed(self, speed_percent):
"""设置风扇速度 0-100% - 精确对应"""
speed_percent = max(0, min(100, speed_percent))
# 精确计算PWM占空比
duty = int(speed_percent * 10.23) # 0-100% 对应 0-1023
if speed_percent == 0:
self.dir_pin.value(0)
self.pwm.duty(0)
self.is_running = False
else:
self.dir_pin.value(0) # 设置方向
self.pwm.duty(duty)
self.is_running = True
self.current_speed = speed_percent
# 精确的速度描述
speed_desc = self.get_speed_description(speed_percent)
print(f"风扇速度: {speed_percent}% - {speed_desc} (duty: {duty})")
return speed_percent
def get_speed_description(self, speed):
"""获取精确的速度描述"""
if speed == 0: return "停止"
elif speed <= 10: return "极低速"
elif speed <= 25: return "低速"
elif speed <= 50: return "中低速"
elif speed <= 75: return "中高速"
elif speed <= 90: return "高速"
else: return "全速"
def stop(self):
"""停止风扇"""
self.dir_pin.value(0)
self.pwm.duty(0)
self.current_speed = 0
self.is_running = False
print("风扇停止")
def get_status(self):
return {
"running": self.is_running,
"speed": self.current_speed,
"speed_desc": self.get_speed_description(self.current_speed),
"duty": self.pwm.duty()
}
def deinit(self):
self.stop()
self.pwm.deinit()
# 黄色LED控制子函数
class LEDController:
def __init__(self, pin):
self.pwm = PWM(Pin(pin))
self.pwm.freq(1000) # 1kHz PWM频率
self.current_brightness = 0
self.is_on = False
self.set_brightness(0)
print(f"LED控制器初始化: PIN={pin}")
def set_brightness(self, brightness_percent):
"""设置LED亮度 0-100% - 精确对应"""
brightness_percent = max(0, min(100, brightness_percent))
# 精确计算PWM占空比
duty = int(brightness_percent * 10.23) # 0-100% 对应 0-1023
self.pwm.duty(duty)
self.current_brightness = brightness_percent
self.is_on = brightness_percent > 0
# 精确的亮度描述
brightness_desc = self.get_brightness_description(brightness_percent)
print(f"LED亮度: {brightness_percent}% - {brightness_desc} (duty: {duty})")
return brightness_percent
def get_brightness_description(self, brightness):
"""获取精确的亮度描述"""
if brightness == 0: return "关闭"
elif brightness <= 10: return "微亮"
elif brightness <= 25: return "暗光"
elif brightness <= 50: return "柔光"
elif brightness <= 75: return "亮光"
elif brightness <= 90: return "强光"
else: return "最亮"
def fade_in(self, duration_ms=2000):
"""LED渐亮效果 - 精确的百分比变化"""
print("LED渐亮...")
steps = 100 # 更多步数实现更平滑的变化
delay = duration_ms // steps
for i in range(steps + 1):
brightness = int((i / steps) * 100)
self.set_brightness(brightness)
time.sleep_ms(delay)
def fade_out(self, duration_ms=2000):
"""LED渐暗效果 - 精确的百分比变化"""
print("LED渐暗...")
steps = 100 # 更多步数实现更平滑的变化
delay = duration_ms // steps
for i in range(steps, -1, -1):
brightness = int((i / steps) * 100)
self.set_brightness(brightness)
time.sleep_ms(delay)
def breath_effect(self, cycles=3, duration_ms=3000):
"""呼吸灯效果 - 精确的百分比变化"""
print(f"LED呼吸效果 {cycles} 次循环...")
for cycle in range(cycles):
print(f"呼吸循环 {cycle + 1}/{cycles}")
self.fade_in(duration_ms // 2)
self.fade_out(duration_ms // 2)
def get_status(self):
return {
"on": self.is_on,
"brightness": self.current_brightness,
"brightness_desc": self.get_brightness_description(self.current_brightness),
"duty": self.pwm.duty()
}
def deinit(self):
self.set_brightness(0)
self.pwm.deinit()
# 创建设备实例
fan = FanController(FAN_PIN1, FAN_PIN2)
led = LEDController(LED_PIN)
# WiFi连接子函数
def connect_wifi():
"""连接WiFi"""
wlan = network.WLAN(network.STA_IF)
wlan.active(True)
if not wlan.isconnected():
print(f"正在连接WiFi: {SSID}")
wlan.connect(SSID, PASSWORD)
timeout = 30
while not wlan.isconnected() and timeout > 0:
time.sleep(1)
print('.', end='')
timeout -= 1
if wlan.isconnected():
ip = wlan.ifconfig()[0]
print(f"\nWiFi连接成功!")
print(f"SSID: {SSID}")
print(f"IP地址: {ip}")
return ip
else:
print("\nWiFi连接失败!")
return None
# 控制页面HTML
def create_html_page():
"""生成控制页面HTML - 优化数字对应显示"""
html = """HTTP/1.1 200 OK\r\nContent-Type: text/html\r\n\r\n
<!DOCTYPE html>
<html>
<head>
<title>ESP32 PWM精确控制</title>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Arial', sans-serif;
background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
min-height: 100vh;
padding: 20px;
}
.container {
max-width: 1000px;
margin: 0 auto;
background: white;
border-radius: 20px;
box-shadow: 0 15px 30px rgba(0,0,0,0.1);
overflow: hidden;
}
.header {
background: linear-gradient(135deg, #4facfe 0%, #00f2fe 100%);
color: white;
padding: 30px;
text-align: center;
}
.header h1 {
font-size: 2.5em;
margin-bottom: 10px;
}
.control-panels {
display: grid;
grid-template-columns: 1fr 1fr;
gap: 20px;
padding: 30px;
}
@media (max-width: 768px) {
.control-panels {
grid-template-columns: 1fr;
}
}
.panel {
background: #f8f9fa;
border-radius: 15px;
padding: 25px;
box-shadow: 0 5px 15px rgba(0,0,0,0.1);
}
.panel-title {
font-size: 1.5em;
color: #495057;
margin-bottom: 20px;
text-align: center;
display: flex;
align-items: center;
justify-content: center;
gap: 10px;
}
.status-display {
background: white;
border-radius: 10px;
padding: 15px;
margin-bottom: 20px;
text-align: center;
border: 2px solid #e9ecef;
}
.status-value {
font-size: 2em;
font-weight: bold;
color: #2196F3;
margin: 10px 0;
}
.status-description {
font-size: 1.1em;
color: #28a745;
font-weight: bold;
margin: 5px 0;
}
.status-label {
font-size: 0.9em;
color: #6c757d;
}
.slider-control {
margin: 25px 0;
}
.slider {
width: 100%;
height: 25px;
margin: 20px 0;
-webkit-appearance: none;
border-radius: 12px;
outline: none;
}
.fan-slider {
background: linear-gradient(90deg, #4CAF50, #FFC107, #F44336);
}
.led-slider {
background: linear-gradient(90deg, #000, #666, #FFF);
}
.slider::-webkit-slider-thumb {
-webkit-appearance: none;
width: 35px;
height: 35px;
background: #2196F3;
border-radius: 50%;
cursor: pointer;
box-shadow: 0 2px 10px rgba(33,150,243,0.4);
border: 3px solid white;
}
.value-display {
font-size: 3em;
font-weight: bold;
text-align: center;
margin: 20px 0;
font-family: 'Courier New', monospace;
}
.fan-value {
color: #2196F3;
text-shadow: 2px 2px 4px rgba(33,150,243,0.3);
}
.led-value {
color: #FFC107;
text-shadow: 2px 2px 4px rgba(255,193,7,0.3);
}
.preset-buttons {
display: grid;
grid-template-columns: repeat(5, 1fr);
gap: 8px;
margin: 20px 0;
}
.effect-buttons {
display: grid;
grid-template-columns: 1fr 1fr;
gap: 10px;
margin: 20px 0;
}
.btn {
padding: 12px 8px;
border: none;
border-radius: 8px;
font-size: 0.9em;
font-weight: bold;
cursor: pointer;
transition: all 0.3s ease;
box-shadow: 0 4px 15px rgba(0,0,0,0.1);
}
.btn:hover {
transform: translateY(-2px);
box-shadow: 0 6px 20px rgba(0,0,0,0.15);
}
.btn:active {
transform: translateY(0);
}
.btn-fan { background: #2196F3; color: white; }
.btn-led { background: #FFC107; color: black; }
.btn-effect { background: #9C27B0; color: white; }
.btn-stop { background: #dc3545; color: white; }
.visualization {
text-align: center;
margin: 20px 0;
padding: 20px;
background: white;
border-radius: 10px;
}
.fan-visual {
font-size: 4em;
color: #2196F3;
transition: all 0.5s ease;
}
.led-visual {
font-size: 4em;
transition: all 0.3s ease;
}
.fan-spinning {
animation: spin linear infinite;
}
@keyframes spin {
from { transform: rotate(0deg); }
to { transform: rotate(360deg); }
}
.led-on {
color: #FFC107;
text-shadow: 0 0 20px #FFC107, 0 0 40px #FFC107;
}
.response-message {
text-align: center;
padding: 15px;
margin: 20px 0;
border-radius: 10px;
font-weight: bold;
display: none;
}
.success { background: #d4edda; color: #155724; }
.error { background: #f8d7da; color: #721c24; }
.speed-labels, .brightness-labels {
display: flex;
justify-content: space-between;
margin-top: -5px;
font-size: 0.8em;
color: #6c757d;
font-weight: bold;
}
.precision-info {
text-align: center;
font-size: 0.9em;
color: #6c757d;
margin-top: 10px;
font-style: italic;
}
</style>
</head>
<body>
<div class="container">
<div class="header">
<h1>🎯 精确PWM控制</h1>
<p>风速/亮度与数字精确对应 | 0-100% 线性控制</p>
</div>
<div class="control-panels">
<!-- 风扇控制面板 -->
<div class="panel">
<h2 class="panel-title">🌬️ 风扇速度控制</h2>
<div class="visualization">
<div class="fan-visual" id="fan-visual">🌀</div>
</div>
<div class="status-display">
<div class="status-label">当前速度</div>
<div class="status-value" id="fan-current-speed">0%</div>
<div class="status-description" id="fan-speed-desc">停止</div>
<div class="status-label" id="fan-status-text">风扇状态</div>
</div>
<div class="slider-control">
<div class="value-display fan-value" id="fan-speed-display">0%</div>
<input type="range" min="0" max="100" value="0" class="slider fan-slider" id="fan-slider" step="1">
<div class="speed-labels">
<span>0%</span>
<span>25%</span>
<span>50%</span>
<span>75%</span>
<span>100%</span>
</div>
<div class="precision-info">精确对应: 0-100% 线性控制</div>
</div>
<div class="preset-buttons">
<button class="btn btn-fan" onclick="setFanSpeed(0)">0%<br>停止</button>
<button class="btn btn-fan" onclick="setFanSpeed(25)">25%<br>低速</button>
<button class="btn btn-fan" onclick="setFanSpeed(50)">50%<br>中速</button>
<button class="btn btn-fan" onclick="setFanSpeed(75)">75%<br>高速</button>
<button class="btn btn-fan" onclick="setFanSpeed(100)">100%<br>全速</button>
</div>
</div>
<!-- LED控制面板 -->
<div class="panel">
<h2 class="panel-title">💡 LED亮度控制</h2>
<div class="visualization">
<div class="led-visual" id="led-visual">💡</div>
</div>
<div class="status-display">
<div class="status-label">当前亮度</div>
<div class="status-value" id="led-current-brightness">0%</div>
<div class="status-description" id="led-brightness-desc">关闭</div>
<div class="status-label" id="led-status-text">LED状态</div>
</div>
<div class="slider-control">
<div class="value-display led-value" id="led-brightness-display">0%</div>
<input type="range" min="0" max="100" value="0" class="slider led-slider" id="led-slider" step="1">
<div class="brightness-labels">
<span>0%</span>
<span>25%</span>
<span>50%</span>
<span>75%</span>
<span>100%</span>
</div>
<div class="precision-info">精确对应: 0-100% 线性调光</div>
</div>
<div class="preset-buttons">
<button class="btn btn-led" onclick="setLEDBrightness(0)">0%<br>关闭</button>
<button class="btn btn-led" onclick="setLEDBrightness(25)">25%<br>暗光</button>
<button class="btn btn-led" onclick="setLEDBrightness(50)">50%<br>柔光</button>
<button class="btn btn-led" onclick="setLEDBrightness(75)">75%<br>亮光</button>
<button class="btn btn-led" onclick="setLEDBrightness(100)">100%<br>最亮</button>
</div>
<div class="effect-buttons">
<button class="btn btn-effect" onclick="ledFadeIn()">渐亮效果</button>
<button class="btn btn-effect" onclick="ledFadeOut()">渐暗效果</button>
<button class="btn btn-effect" onclick="ledBreath()">呼吸灯</button>
<button class="btn btn-stop" onclick="setLEDBrightness(0)">全部关闭</button>
</div>
</div>
</div>
<div class="response-message" id="response-message"></div>
</div>
<script>
// 风扇控制
const fanSlider = document.getElementById('fan-slider');
const fanSpeedDisplay = document.getElementById('fan-speed-display');
const fanCurrentSpeed = document.getElementById('fan-current-speed');
const fanSpeedDesc = document.getElementById('fan-speed-desc');
const fanStatusText = document.getElementById('fan-status-text');
const fanVisual = document.getElementById('fan-visual');
// LED控制
const ledSlider = document.getElementById('led-slider');
const ledBrightnessDisplay = document.getElementById('led-brightness-display');
const ledCurrentBrightness = document.getElementById('led-current-brightness');
const ledBrightnessDesc = document.getElementById('led-brightness-desc');
const ledStatusText = document.getElementById('led-status-text');
const ledVisual = document.getElementById('led-visual');
const responseMessage = document.getElementById('response-message');
// 风扇滑块事件 - 实时显示精确数值
fanSlider.addEventListener('input', function() {
const speed = parseInt(this.value);
fanSpeedDisplay.textContent = speed + '%';
updateFanVisual(speed);
updateFanDescription(speed);
});
fanSlider.addEventListener('change', function() {
const speed = parseInt(this.value);
setFanSpeed(speed);
});
// LED滑块事件 - 实时显示精确数值
ledSlider.addEventListener('input', function() {
const brightness = parseInt(this.value);
ledBrightnessDisplay.textContent = brightness + '%';
updateLEDVisual(brightness);
updateLEDDescription(brightness);
});
ledSlider.addEventListener('change', function() {
const brightness = parseInt(this.value);
setLEDBrightness(brightness);
});
// 风扇控制函数 - 精确数值传输
function setFanSpeed(speed) {
fetch('/control?device=fan&value=' + speed)
.then(response => response.text())
.then(data => {
showMessage('风扇: ' + data, 'success');
fanSlider.value = speed;
fanSpeedDisplay.textContent = speed + '%';
fanCurrentSpeed.textContent = speed + '%';
updateFanVisual(speed);
updateFanDescription(speed);
updateFanStatus(speed);
})
.catch(error => {
showMessage('风扇控制失败: ' + error, 'error');
});
}
// LED控制函数 - 精确数值传输
function setLEDBrightness(brightness) {
fetch('/control?device=led&value=' + brightness)
.then(response => response.text())
.then(data => {
showMessage('LED: ' + data, 'success');
ledSlider.value = brightness;
ledBrightnessDisplay.textContent = brightness + '%';
ledCurrentBrightness.textContent = brightness + '%';
updateLEDVisual(brightness);
updateLEDDescription(brightness);
updateLEDStatus(brightness);
})
.catch(error => {
showMessage('LED控制失败: ' + error, 'error');
});
}
// LED特效函数
function ledFadeIn() {
fetch('/control?device=led&effect=fade_in')
.then(response => response.text())
.then(data => {
showMessage('LED: ' + data, 'success');
setLEDBrightness(100);
})
.catch(error => {
showMessage('特效执行失败: ' + error, 'error');
});
}
function ledFadeOut() {
fetch('/control?device=led&effect=fade_out')
.then(response => response.text())
.then(data => {
showMessage('LED: ' + data, 'success');
setLEDBrightness(0);
})
.catch(error => {
showMessage('特效执行失败: ' + error, 'error');
});
}
function ledBreath() {
fetch('/control?device=led&effect=breath')
.then(response => response.text())
.then(data => {
showMessage('LED: ' + data, 'success');
})
.catch(error => {
showMessage('呼吸灯执行失败: ' + error, 'error');
});
}
// 精确的描述更新函数
function updateFanDescription(speed) {
const descriptions = {
0: '停止',
10: '极低速',
25: '低速',
50: '中低速',
75: '中高速',
90: '高速',
100: '全速'
};
let desc = '停止';
if (speed > 0 && speed <= 10) desc = '极低速';
else if (speed <= 25) desc = '低速';
else if (speed <= 50) desc = '中低速';
else if (speed <= 75) desc = '中高速';
else if (speed <= 90) desc = '高速';
else if (speed > 90) desc = '全速';
fanSpeedDesc.textContent = desc;
}
function updateLEDDescription(brightness) {
const descriptions = {
0: '关闭',
10: '微亮',
25: '暗光',
50: '柔光',
75: '亮光',
90: '强光',
100: '最亮'
};
let desc = '关闭';
if (brightness > 0 && brightness <= 10) desc = '微亮';
else if (brightness <= 25) desc = '暗光';
else if (brightness <= 50) desc = '柔光';
else if (brightness <= 75) desc = '亮光';
else if (brightness <= 90) desc = '强光';
else if (brightness > 90) desc = '最亮';
ledBrightnessDesc.textContent = desc;
}
// 可视化更新
function updateFanVisual(speed) {
if (speed > 0) {
fanVisual.classList.add('fan-spinning');
// 速度越快，旋转越快
fanVisual.style.animationDuration = (2 - speed/50) + 's';
} else {
fanVisual.classList.remove('fan-spinning');
}
}
function updateLEDVisual(brightness) {
if (brightness > 0) {
ledVisual.classList.add('led-on');
ledVisual.style.opacity = brightness / 100;
ledVisual.style.filter = `brightness(${100 + brightness}%) drop-shadow(0 0 ${brightness/3}px gold)`;
} else {
ledVisual.classList.remove('led-on');
ledVisual.style.opacity = '0.3';
ledVisual.style.filter = 'none';
}
}
function updateFanStatus(speed) {
if (speed > 0) {
fanStatusText.textContent = '运行中';
fanStatusText.style.color = '#28a745';
} else {
fanStatusText.textContent = '已停止';
fanStatusText.style.color = '#dc3545';
}
}
function updateLEDStatus(brightness) {
if (brightness > 0) {
ledStatusText.textContent = '开启中';
ledStatusText.style.color = '#28a745';
} else {
ledStatusText.textContent = '已关闭';
ledStatusText.style.color = '#dc3545';
}
}
function showMessage(message, type) {
responseMessage.textContent = message;
responseMessage.className = 'response-message ' + type;
responseMessage.style.display = 'block';
setTimeout(() => {
responseMessage.style.display = 'none';
}, 3000);
}
// 页面加载时获取当前状态
window.onload = function() {
fetch('/status')
.then(response => response.json())
.then(data => {
// 风扇状态
const fanSpeed = data.fan.speed;
fanSlider.value = fanSpeed;
fanSpeedDisplay.textContent = fanSpeed + '%';
fanCurrentSpeed.textContent = fanSpeed + '%';
updateFanVisual(fanSpeed);
updateFanDescription(fanSpeed);
updateFanStatus(fanSpeed);
// LED状态
const ledBrightness = data.led.brightness;
ledSlider.value = ledBrightness;
ledBrightnessDisplay.textContent = ledBrightness + '%';
ledCurrentBrightness.textContent = ledBrightness + '%';
updateLEDVisual(ledBrightness);
updateLEDDescription(ledBrightness);
updateLEDStatus(ledBrightness);
})
.catch(error => {
console.log('获取状态失败:', error);
});
};
</script>
</body>
</html>
"""
return html
def handle_control_request(device, value, effect=None):
"""处理控制请求 - 确保数值精确对应"""
try:
if device == "fan":
speed = int(value)
actual_speed = fan.set_speed(speed)
return f"速度设置为 {actual_speed}% - {fan.get_speed_description(actual_speed)}"
elif device == "led":
if effect:
if effect == "fade_in":
led.fade_in()
return "渐亮效果完成 - 亮度 100%"
elif effect == "fade_out":
led.fade_out()
return "渐暗效果完成 - 亮度 0%"
elif effect == "breath":
led.breath_effect()
return "呼吸灯效果完成"
else:
brightness = int(value)
actual_brightness = led.set_brightness(brightness)
return f"亮度设置为 {actual_brightness}% - {led.get_brightness_description(actual_brightness)}"
return "未知设备"
except ValueError:
return "无效的参数值"
except Exception as e:
return f"控制错误: {str(e)}"
def get_system_status():
"""获取系统状态"""
return {
"fan": fan.get_status(),
"led": led.get_status()
}
def main():
"""主程序"""
print("启动精确PWM控制系统...")
print("风扇控制: 0-100% 精确对应")
print("LED控制: 0-100% 精确调光")
# 连接WiFi
ip = connect_wifi()
# 在LCD显示IP
lcd.move_to(0, 0)
lcd.putstr('IP:')
lcd.move_to(0, 1)
lcd.putstr(ip)
if not ip:
print("无法启动，WiFi连接失败")
return
# 创建服务器
addr = socket.getaddrinfo('0.0.0.0', 80)[0][-1]
server = socket.socket()
server.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
server.bind(addr)
server.listen(5)
print(f"服务器启动成功，访问地址: http://{ip}")
print("等待客户端连接...")
request_count = 0
while True:
try:
client, addr = server.accept()
request_count += 1
print(f"\n请求 #{request_count} 来自: {addr}")
# 接收请求
request = client.recv(1024).decode('utf-8')
if not request:
client.close()
continue
# 解析请求
request_line = request.split('\n')[0]
print(f"请求: {request_line}")
# 处理不同请求
if "GET / " in request or "GET /index" in request:
# 返回控制页面
html = create_html_page()
client.send(html)
print("发送控制页面")
elif "GET /control" in request:
# 处理控制命令
if "?device=fan&value=" in request:
value = request.split('?device=fan&value=')[1].split(' ')[0]
response = handle_control_request("fan", value)
client.send(f"HTTP/1.1 200 OK\r\nContent-Type: text/plain\r\n\r\n{response}")
print(f"风扇控制: {response}")
elif "?device=led&value=" in request:
value = request.split('?device=led&value=')[1].split(' ')[0]
response = handle_control_request("led", value)
client.send(f"HTTP/1.1 200 OK\r\nContent-Type: text/plain\r\n\r\n{response}")
print(f"LED控制: {response}")
elif "?device=led&effect=" in request:
effect = request.split('?device=led&effect=')[1].split(' ')[0]
response = handle_control_request("led", None, effect)
client.send(f"HTTP/1.1 200 OK\r\nContent-Type: text/plain\r\n\r\n{response}")
print(f"LED特效: {response}")
else:
client.send(b"HTTP/1.1 400 Bad Request\r\n\r\nInvalid request")
elif "GET /status" in request:
# 返回当前状态
status = get_system_status()
status_json = '{"fan": {"speed": %d, "running": %s, "speed_desc": "%s"}, "led": {"brightness": %d, "on": %s, "brightness_desc": "%s"}}' % (
status["fan"]["speed"],
str(status["fan"]["running"]).lower(),
status["fan"]["speed_desc"],
status["led"]["brightness"],
str(status["led"]["on"]).lower(),
status["led"]["brightness_desc"]
)
client.send(f"HTTP/1.1 200 OK\r\nContent-Type: application/json\r\n\r\n{status_json}")
print("发送系统状态")
else:
# 404 Not Found
client.send(b"HTTP/1.1 404 Not Found\r\n\r\nPage not found")
client.close()
except OSError as e:
print(f"Socket错误: {e}")
except Exception as e:
print(f"处理请求时出错: {e}")
try:
client.close()
except:
pass
time.sleep(0.1)
# 精确测试函数
def test_precision_control():
"""测试精确控制功能"""
print("测试精确控制...")
# 测试风扇精确控制
print("测试风扇精确控制:")
test_speeds = [0, 10, 25, 50, 75, 90, 100, 90, 75, 50, 25, 10, 0]
for speed in test_speeds:
print(f"设置风扇速度: {speed}%")
fan.set_speed(speed)
time.sleep(1)
# 测试LED精确控制
print("测试LED精确控制:")
test_brightness = [0, 10, 25, 50, 75, 90, 100, 90, 75, 50, 25, 10, 0]
for brightness in test_brightness:
print(f"设置LED亮度: {brightness}%")
led.set_brightness(brightness)
time.sleep(0.5)
# 回到初始状态
fan.set_speed(0)
led.set_brightness(0)
print("精确控制测试完成")
if __name__ == "__main__":
# 先测试精确控制
test_precision_control()
time.sleep(2)
# 运行主程序
try:
main()
except KeyboardInterrupt:
print("\n程序被用户中断")
except Exception as e:
print(f"程序错误: {e}")
finally:
# 清理资源
fan.deinit()
led.deinit()
print("资源清理完成")
21.6 实验结果#
⚠️ 注意：手机/平板需要和智能家居连接同一个WiFi，或者手机/平板打开热点，智能家居连接手机/平板的热点，且示例代码中的WiFi名称与WiFi密码和手机/平板、智能家居是同一个WiFi名称与密码。
⚠️ 注意：WiFi必须是2.4Ghz频率的，否则ESP32无法连接WiFi，不支持连接5GHz频段的WiFi。。
⚠️ 特别注意： 手机或平板一定要与ESP32开发板连接的是同一个WiFi，否则将无法进入控制页面。还有就是ESP32开发板在使用WiFi功能时功耗很大，需要外接DC电源(电源电压必须充足，最好使用新电池)才能满足它的工作电力需求，如果达不到它的工作电力需求ESP32板将会一直复位导致代码无法正常运行。
按照接线图接好线，将 ESP32 主控板通过Micro USB数据线与计算机相连供电，外接电源供电，然后单击按钮
，示例代码开始执行。

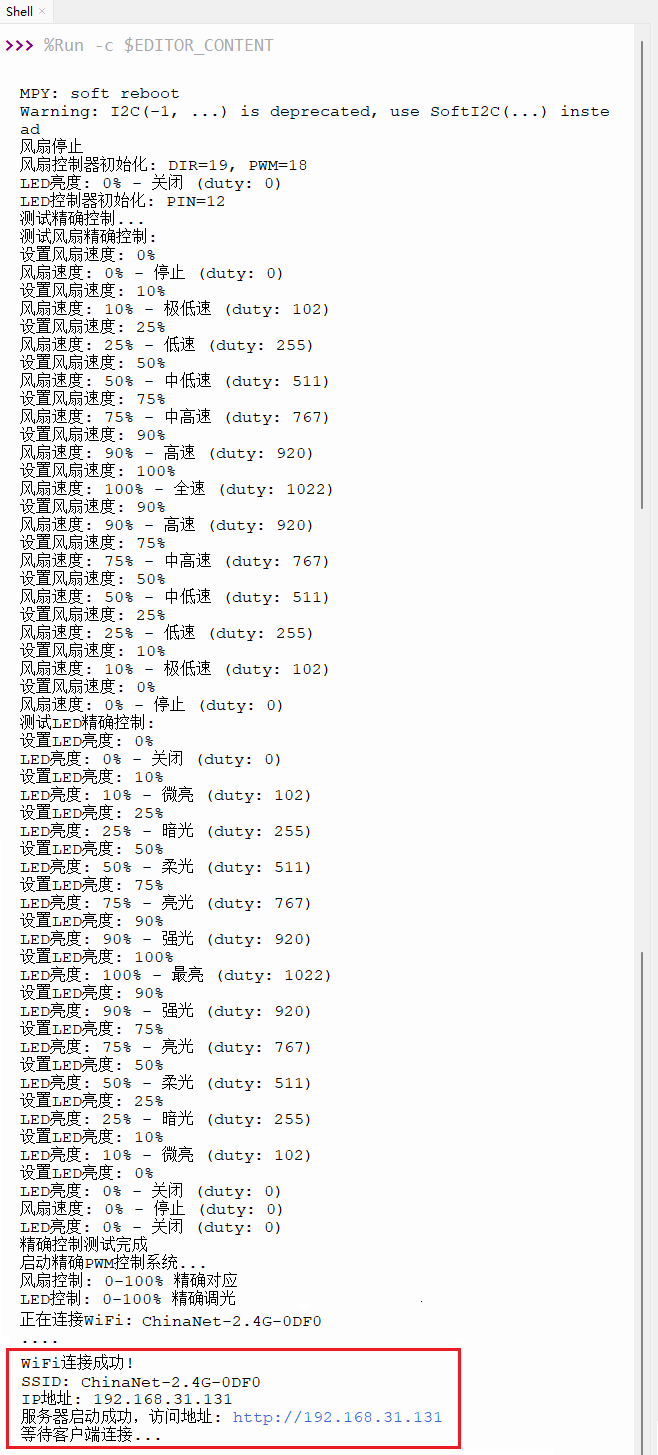

示例代码开始执行之后，你会看到的现象是：Shell窗口中会打印风扇和黄色LED的引脚信息，接着风扇开启，并且风速先逐渐增大后逐渐减少，直到风扇停止，同时Shell窗口中会打印风扇转动的风速变化相关信息；黄色LED逐渐变亮后逐渐变暗，同时Shell窗口中打印LED亮暗渐变的相关信息。如果成功连接上WiFi，Shell窗口中还会打印WiFi名称和分配到的IP地址（假如Shell窗口中没有打印出分配到的IP地址，可以按下ESP32主控板上的复位键重启，重新连接WiFi），同时LCD1602显示对应的IP地址。不同的网络（WiFi），IP地址是不一样。

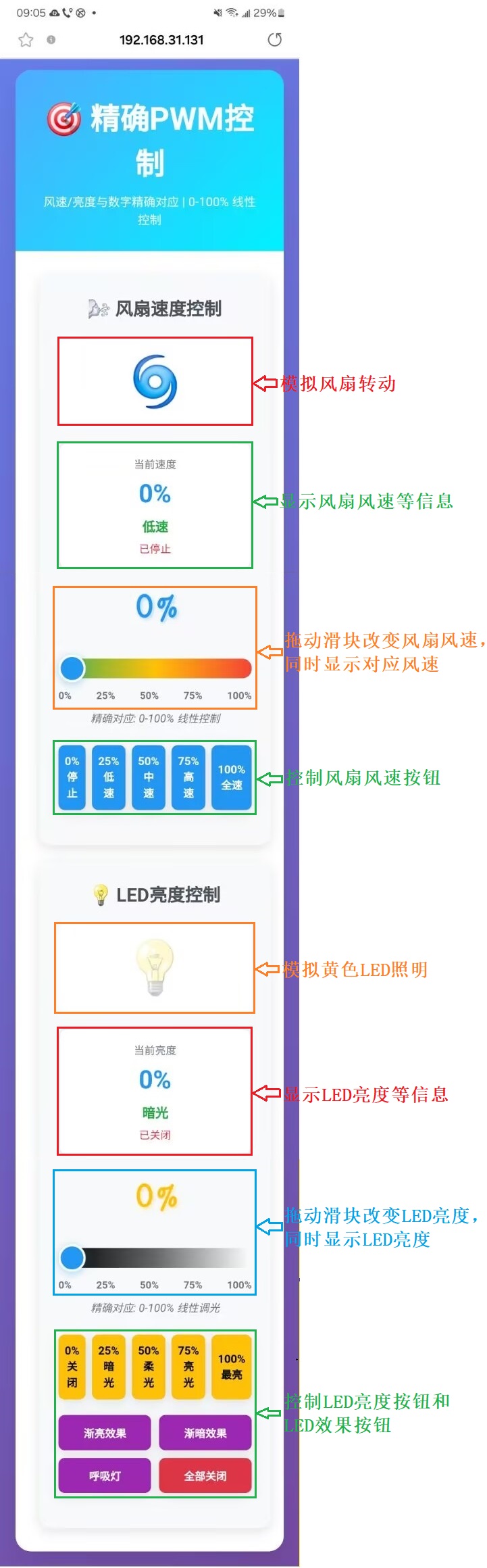

然后，您可以在手机端/平板端的浏览器中输入Shell窗口打印的 ESP32 IP地址（或LCD1602显示的 ESP32 IP地址），使用浏览器打开ESP32的IP地址，并访问网页。在本例中，您可以在浏览器中输入你自己的ESP32 IP地址(这里是以192.168.31.131为例，而你需要将IP地址：192.168.31.131 修改成你自己的 ESP32 IP地址)，在浏览器中打开ESP32的IP地址来查看风扇模块和黄色LED模块的控制网页。
进入对应WiFi网页之后，可以看到网页中显示风扇和LED等相关设备。同时，Shell窗口中会打印 “发送控制页面”、“发送系统状态” 等相关信息。
接下来，我们可以通过手机/平板等设备的WiFi网页来操作黄色LED和风扇。
⚠️ 特别注意： 一定要外接电源，外接DC电源(电源电压必须充足，最好使用新电池)才能满足ESP32主控板和风扇模块的工作电力需求，如果达不到它的工作电力需求，ESP32主控板将会一直复位导致代码无法正常运行。
单击
“停止/启动后端进程”退出程序。
