KT0186 P10 16x32全彩LED显示模块

KT0186 P10 16x32全彩LED显示模块#

KT0186 P10 16x32 Full Color LED Display Module#


Chinese Tutorial#

1.介绍#

广告牌是一种传递信息的户外媒体，我们的P10 3216全彩LED矩阵便是广告牌主要的成员，可以由多个P10 3216 LED矩阵组成一个更大的广告牌。P10 3216全彩LED矩阵由512个RGB灯珠组成3216的矩阵，可以混合出各种颜色的文字。

2.参数#

LED 封装：SMD

工作：-10℃~+60℃

结构特点：灯驱合一

相对湿度：10%～95%RH

全彩色：红色+绿色+蓝色

可视距离：5-101

单点象素组合：1R1G1B

使用环境：室外

物理密度：10000点/m2

平均无故障时间：1万个小时

物理点间距：10mm

使用寿命：7.5万~10万小时

发光点颜色：1R1G1B

平均无故障时间：1万个小时

驱动方式：恒流

开关电源负荷：5V/40A

扫描方式：1/4扫

工作电压： 220V± 10%

单元板分辨率：32点×16点=512点/pcs

输入电压：4.8～5.5v

单元板尺寸：320mm×160mm

平均功耗：250W/m2

白平衡亮度：>4500cd/m2

最大功耗：<500w/m

模组数据接口：HUB-08

平 整度：模块间拼逢<1mm

环境温度：存贮-20℃~+80℃

单元板重量：约 350g

3.接线图#

如何判断数据输入输出口，忽略垂直箭头（上下的箭头），看水平箭头（左右方向的箭头），水平箭头表示数据输入到数据输出的方向，由此就可以判断出输入端的接口。 如下图，水平箭头是指向右边的，那就证明数据是从左边输入右边输出的，那左边的便是输入接口了。


以排线接头凸起点为参照物（红色圈部分），黄色圈的两个点是导通的。

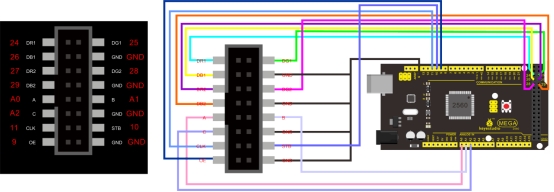

将排线接入左侧图中接口，然后使用面包线连接排线和MEGA 2560开发板，接线位置参照右图。


4.代码#

下载：./code.7z

#include <RGBmatrixPanel.h>
#define CLK 11 // USE THIS ON ARDUINO MEGA
#define OE   9
#define LAT 10
#define A   A0
#define B   A1
#define C   A2
RGBmatrixPanel matrix(A, B, C, CLK, LAT, OE, false);
void setup() {

  matrix.begin();

  // draw a pixel in white
  matrix.drawPixel(0, 0, matrix.Color333(7, 7, 7));
  delay(500);

  // fix the screen with green
  matrix.fillRect(0, 0, 32, 16, matrix.Color333(0, 7, 0));
  delay(500);

  // draw a box in yellow
  matrix.drawRect(0, 0, 32, 16, matrix.Color333(7, 7, 0));
  delay(500);

  // draw an 'X' in red
  matrix.drawLine(0, 0, 31, 15, matrix.Color333(7, 0, 0));
  matrix.drawLine(31, 0, 0, 15, matrix.Color333(7, 0, 0));
  delay(500);

  // draw a blue circle
  matrix.drawCircle(7, 7, 7, matrix.Color333(0, 0, 7));
  delay(500);

  // fill a violet circle
  matrix.fillCircle(23, 7, 7, matrix.Color333(7, 0, 7));
  delay(500);

  // fill the screen with black
  matrix.fillScreen(matrix.Color333(0, 0, 0));

  // draw some text!
  matrix.setCursor(1, 0);  // start at top left, with one pixel of spacing
  matrix.setTextSize(1);   // size 1 == 8 pixels high

  // print each letter with a rainbow color
  matrix.setTextColor(matrix.Color333(7, 0, 0));
  matrix.print('k');
  matrix.setTextColor(matrix.Color333(7, 4, 0));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(7, 7, 0));
  matrix.print('y');
  matrix.setTextColor(matrix.Color333(4, 7, 0));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(0, 7, 0));
  matrix.print('s');

  matrix.setCursor(1, 9);  // next line
  matrix.setTextColor(matrix.Color333(0, 7, 7));
  matrix.print('h');
  matrix.setTextColor(matrix.Color333(0, 4, 7));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(0, 0, 7));
  matrix.print('l');
  matrix.setTextColor(matrix.Color333(4, 0, 7));
  matrix.print('l');
  matrix.setTextColor(matrix.Color333(7, 0, 4));
  matrix.print('o');

  // whew!
}

void loop() {
  // Do nothing -- image doesn't change
}

5.现象#


English Tutorial#

1.Introduction#

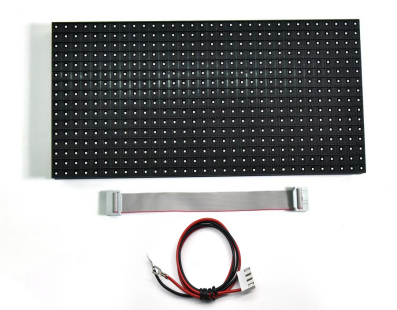

Billboard is an outdoor media that transmits information. The P10 32*16 full-color LED matrix is one of billboards. It can form into a larger billboard. It is composed of 512 RGB lamp beads, which can produce text of various colors.

2.Parameters#

LED sealed package：SMD

Working temperature：-10℃~+60℃

Structural features：light +driver

Relative humidity：10%～95%RH

Full color：red+green+blue

Visible distance：5-101

Single pixel combination：1R1G1B

Application：outdoor

Physical density：10000点/m2

Normal working time：10,000 hours

Physical point spacing：10mm

Life span：75000~100000 hours

Glowing point color：1R1G1B

Average working time：10000 hours

Driving way：constant current

Switching power supply load：5V/40A

Scanning method：1/4扫

Operating Voltage： 220V± 10%

Cell board resolution：32 dot ×16 dot =512 dot /pcs

Input voltage：4.8～5.5v

Cell board size：320mm×160mm

Average power consumption：250W/m2

White balance brightness：>4500cd/m2

Max power consumption：<500w/m

Module data interface：HUB-08

Flatness：gaps of modules<1mm

Ambient temperature：storage 20℃~+80℃

Cell board weight：around 350g

3.Connection Diagram#

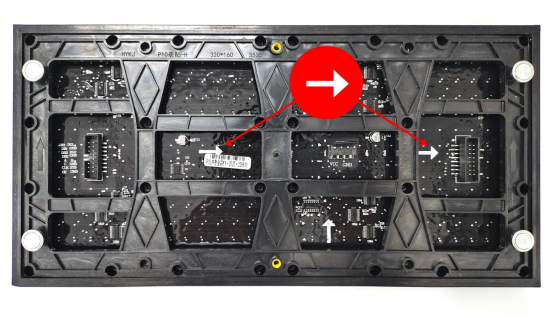

How to determine data input/output ports? Ignore vertical arrows(up and down arrows), view horizontal arrows(left and right arrows). Horizontal arrows imply the direction of data input to data output. In this way, you can determine the port of inputs As you can see horizontal arrows below point at the right side. That means data coming from the left to the right. So, the left is the input port.

image-20260330110751543

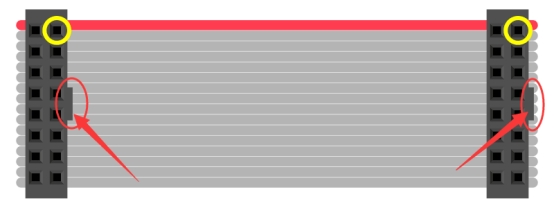

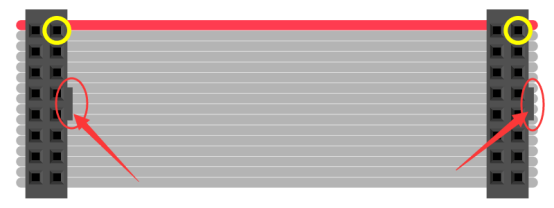

Take the raised point of the cable connector as a reference(red circles). Interfaces marked by yellow circles are connected.

image-20260330110822546

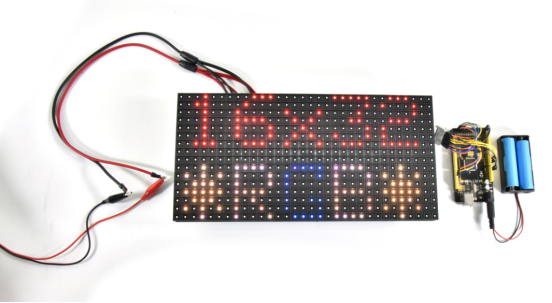

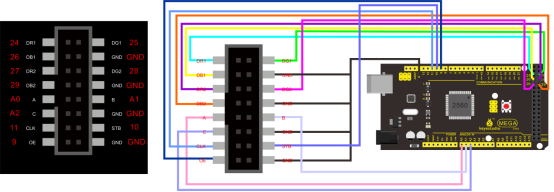

Connect flat cables to the left port, then wire the MEGA 2560 board and flat cables using breadboard wires, as shown below;

image-20260330110841016

4.Test Code#

downlosds:./code.7z

#include <RGBmatrixPanel.h>

#define CLK 11 // USE THIS ON ARDUINO MEGA
#define OE   9
#define LAT 10
#define A   A0
#define B   A1
#define C   A2

RGBmatrixPanel matrix(A, B, C, CLK, LAT, OE, false);

void setup() {

  matrix.begin();

  // draw a pixel in white
  matrix.drawPixel(0, 0, matrix.Color333(7, 7, 7));
  delay(500);

  // fix the screen with green
  matrix.fillRect(0, 0, 32, 16, matrix.Color333(0, 7, 0));
  delay(500);

  // draw a box in yellow
  matrix.drawRect(0, 0, 32, 16, matrix.Color333(7, 7, 0));
  delay(500);

  // draw an 'X' in red
  matrix.drawLine(0, 0, 31, 15, matrix.Color333(7, 0, 0));
  matrix.drawLine(31, 0, 0, 15, matrix.Color333(7, 0, 0));
  delay(500);

  // draw a blue circle
  matrix.drawCircle(7, 7, 7, matrix.Color333(0, 0, 7));
  delay(500);

  // fill a violet circle
  matrix.fillCircle(23, 7, 7, matrix.Color333(7, 0, 7));
  delay(500);

  // fill the screen with black
  matrix.fillScreen(matrix.Color333(0, 0, 0));

  // draw some text!
  matrix.setCursor(1, 0);  // start at top left, with one pixel of spacing
  matrix.setTextSize(1);   // size 1 == 8 pixels high

  // print each letter with a rainbow color
  matrix.setTextColor(matrix.Color333(7, 0, 0));
  matrix.print('k');
  matrix.setTextColor(matrix.Color333(7, 4, 0));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(7, 7, 0));
  matrix.print('y');
  matrix.setTextColor(matrix.Color333(4, 7, 0));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(0, 7, 0));
  matrix.print('s');

  matrix.setCursor(1, 9);  // next line
  matrix.setTextColor(matrix.Color333(0, 7, 7));
  matrix.print('h');
  matrix.setTextColor(matrix.Color333(0, 4, 7));
  matrix.print('e');
  matrix.setTextColor(matrix.Color333(0, 0, 7));
  matrix.print('l');
  matrix.setTextColor(matrix.Color333(4, 0, 7));
  matrix.print('l');
  matrix.setTextColor(matrix.Color333(7, 0, 4));
  matrix.print('o');

  // whew!
}

void loop() {
  // Do nothing -- image doesn't change
}

5.Test Result#

image-20260330110939236
