1. Python简介

Python是一种高级编程语言，因其简洁的语法和强大的功能而受到广泛欢迎。它通常被用于web开发、数据分析、人工智能、机器学习、自动化和科学计算等众多领域。Python的设计理念强调代码的可读性和简洁性，使得编写和维护代码变得更加高效。由于其丰富的库和社区支持，Python成为初学者学习编程的首选语言之一，同时也被许多大型项目和企业所采用。

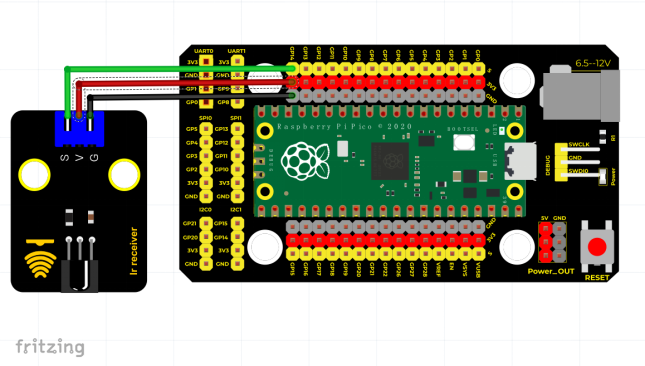

2. 接线图

3. 测试代码（测试软件版本：Thonny 3.3.3）

import utime
from machine import Pin

ird = Pin(14, Pin.IN)

act = {
    "1": "LLLLLLLLHHHHHHHHLHHLHLLLHLLHLHHH",
    "2": "LLLLLLLLHHHHHHHHHLLHHLLLLHHLLHHH",
    "3": "LLLLLLLLHHHHHHHHHLHHLLLLLHLLHHHH",
    "4": "LLLLLLLLHHHHHHHHLLHHLLLLHHLLHHHH",
    "5": "LLLLLLLLHHHHHHHHLLLHHLLLHHHLLHHH",
    "6": "LLLLLLLLHHHHHHHHLHHHHLHLHLLLLHLH",
    "7": "LLLLLLLLHHHHHHHHLLLHLLLLHHHLHHHH",
    "8": "LLLLLLLLHHHHHHHHLLHHHLLLHHLLLHHH",
    "9": "LLLLLLLLHHHHHHHHLHLHHLHLHLHLLHLH",
    "0": "LLLLLLLLHHHHHHHHLHLLHLHLHLHHLHLH",
    "Up": "LLLLLLLLHHHHHHHHLHHLLLHLHLLHHHLH",
    "Down": "LLLLLLLLHHHHHHHHHLHLHLLLLHLHLHHH",
    "Left": "LLLLLLLLHHHHHHHHLLHLLLHLHHLHHHLH",
    "Right": "LLLLLLLLHHHHHHHHHHLLLLHLLLHHHHLH",
    "Ok": "LLLLLLLLHHHHHHHHLLLLLLHLHHHHHHLH",
    "*": "LLLLLLLLHHHHHHHHLHLLLLHLHLHHHHLH",
    "#": "LLLLLLLLHHHHHHHHLHLHLLHLHLHLHHLH"
}

def read_ircode(ird):
    wait = 1
    complete = 0
    seq0 = []
    seq1 = []

    while wait == 1:
        if ird.value() == 0:
            wait = 0

    while wait == 0 and complete == 0:
        start = utime.ticks_us()

        while ird.value() == 0:
            ms1 = utime.ticks_us()
            diff = utime.ticks_diff(ms1, start)
            seq0.append(diff)

        while ird.value() == 1 and complete == 0:
            ms2 = utime.ticks_us()
            diff = utime.ticks_diff(ms2, ms1)
            if diff > 10000:
                complete = 1
            seq1.append(diff)

    code = ""
    for val in seq1:
        if val < 2000:
            if val < 700:
                code += "L"
            else:
                code += "H"

    command = ""
    for k, v in act.items():
        if code == v:
            command = k

    if command == "":
        command = code

    return command

while True:
    command = read_ircode(ird)
    print(command)
    utime.sleep(0.5)

4. 代码说明

read_ircode(ird)函数返回字典中的键，即对应遥控器上的按键符号。

5. 测试结果

使用红外遥控器对准红外接收传感器的接收头并按下按键后，红外接收传感器上的LED开始闪烁。如图所示。
